Positioning Tilt-in-Space Wheelchair VIP515 | Karma

Positioning Tilt-in-Space Wheelchair VIP515 | Karma

$ 38.83

$ 0.00

Save: $

Seat:
  • 16"
  • 18"
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

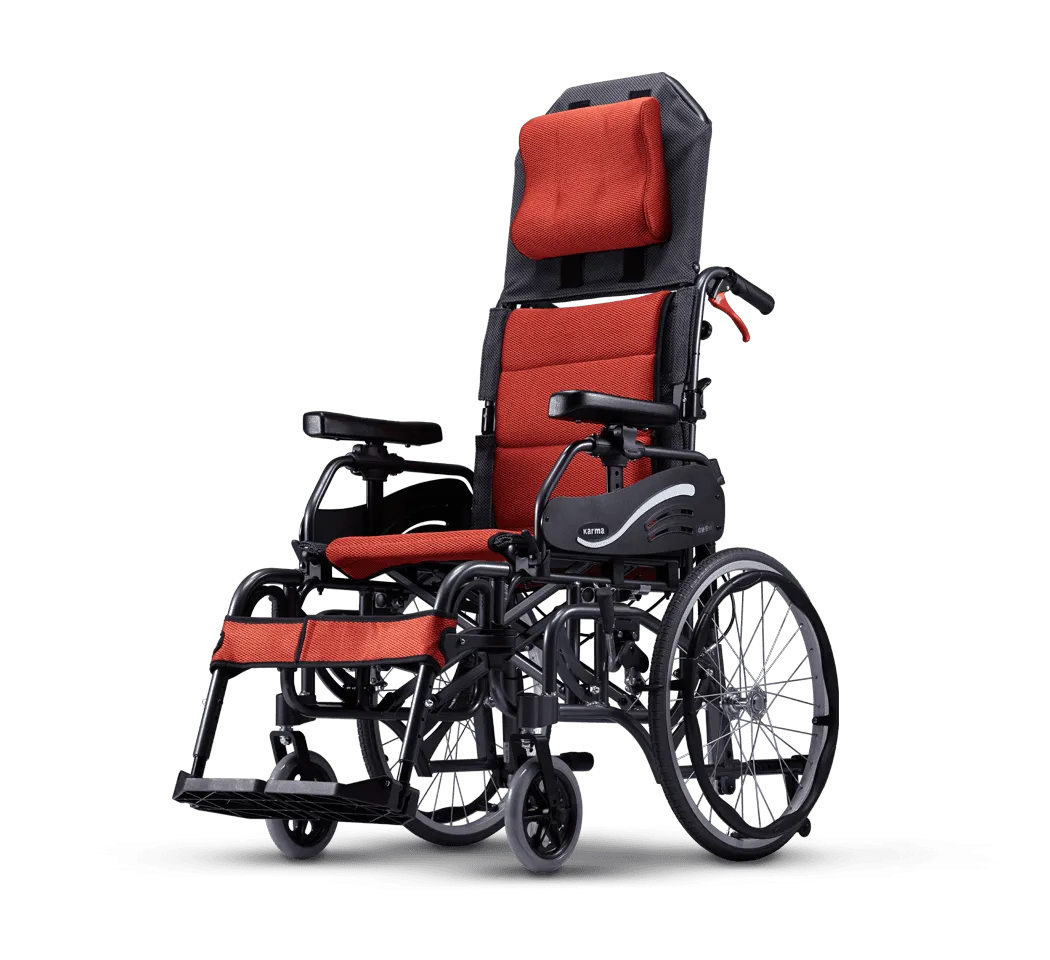

Karma VIP515 Positioning Wheelchair is not just a lightweight folding wheelchair; but a revolutionary designed Tilt-in-Space wheelchair (with a tilt range of 0 to 35 degrees). Carried by exclusive gas struts using an intelligent center-of-gravity weight shifting technology, it maintains stability while the chair is tilted.

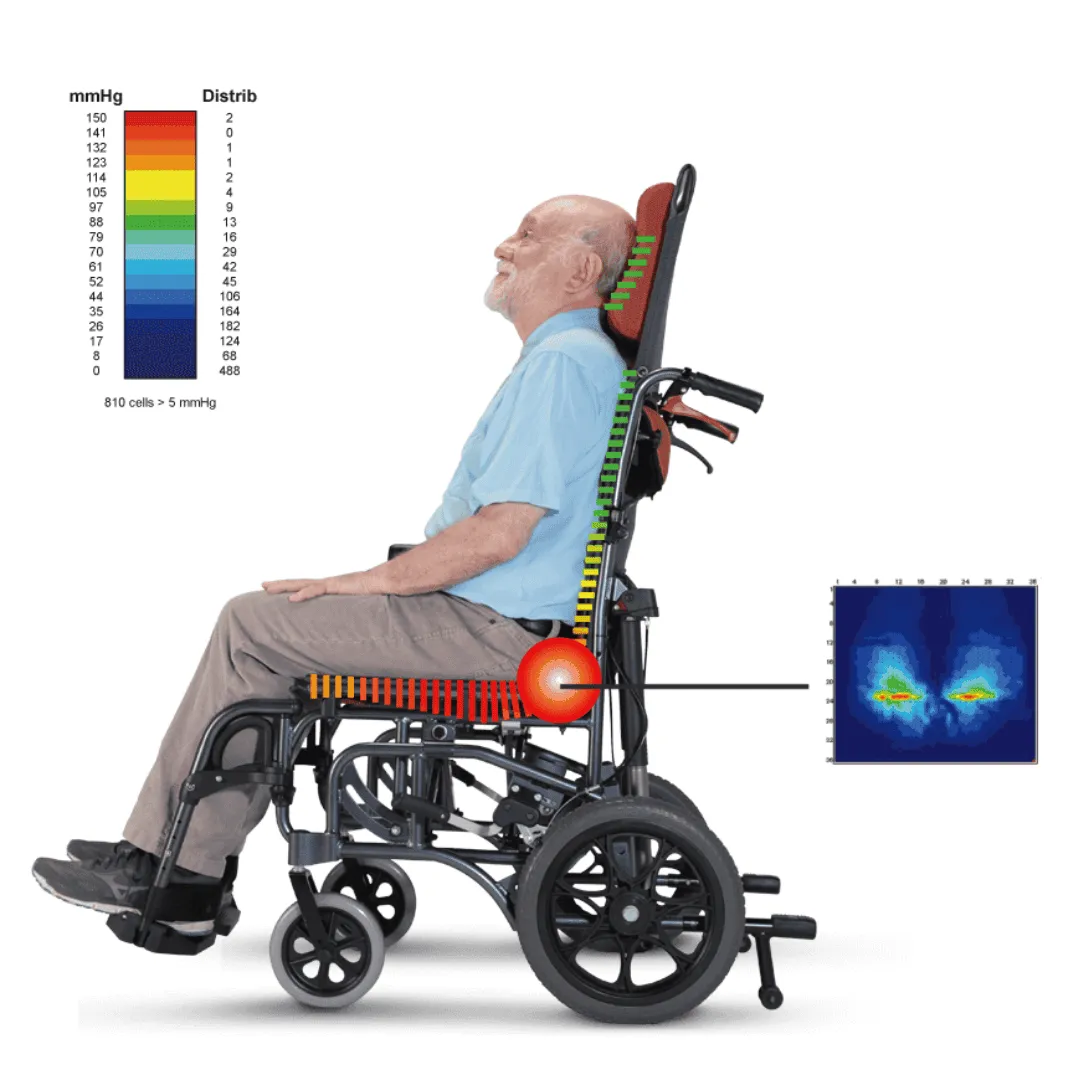

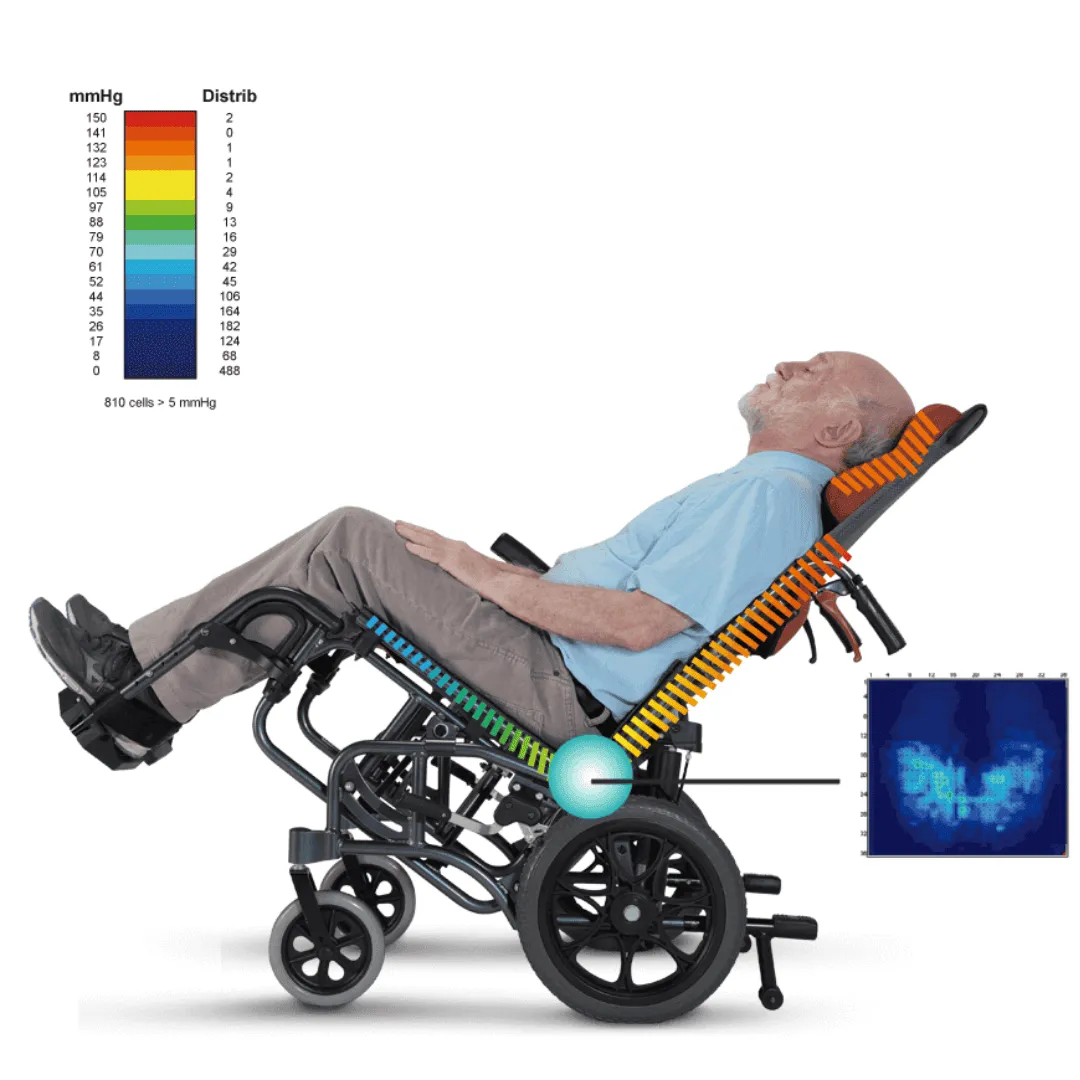

Tilt-in-space

The Tilt-in-Space system allows the attendant to change the position of the user by tilting the chair, thus shifting the pressure away from one point and redistributing it over a larger surface area.

- This feature helps reduce the risks of developing pressure ulcers and avoid back pain.

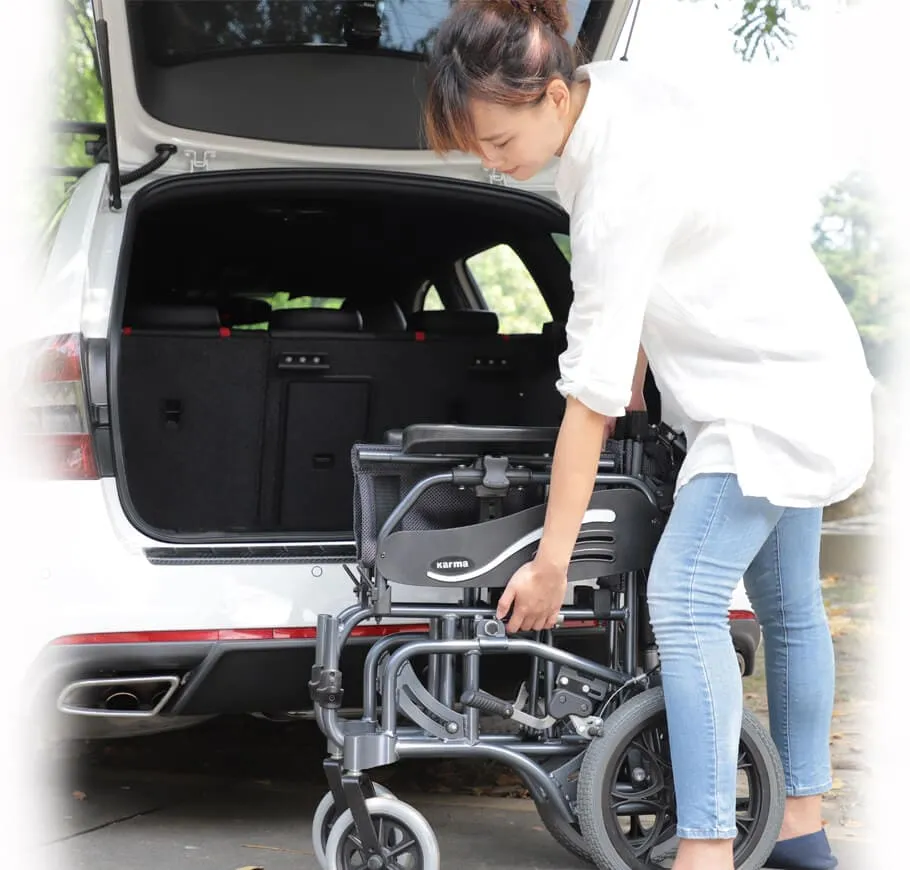

Foldable and Compact

Made of aircraft-grade aluminum alloy, the VIP 515 is not only lightweight, it folds compactly, offering greater convenience for both storing and traveling. No tools required for assembly or disassembly.



Flip-back Armrest

-  The armrest also flip-backs for easier transport, on and off the wheelchair.

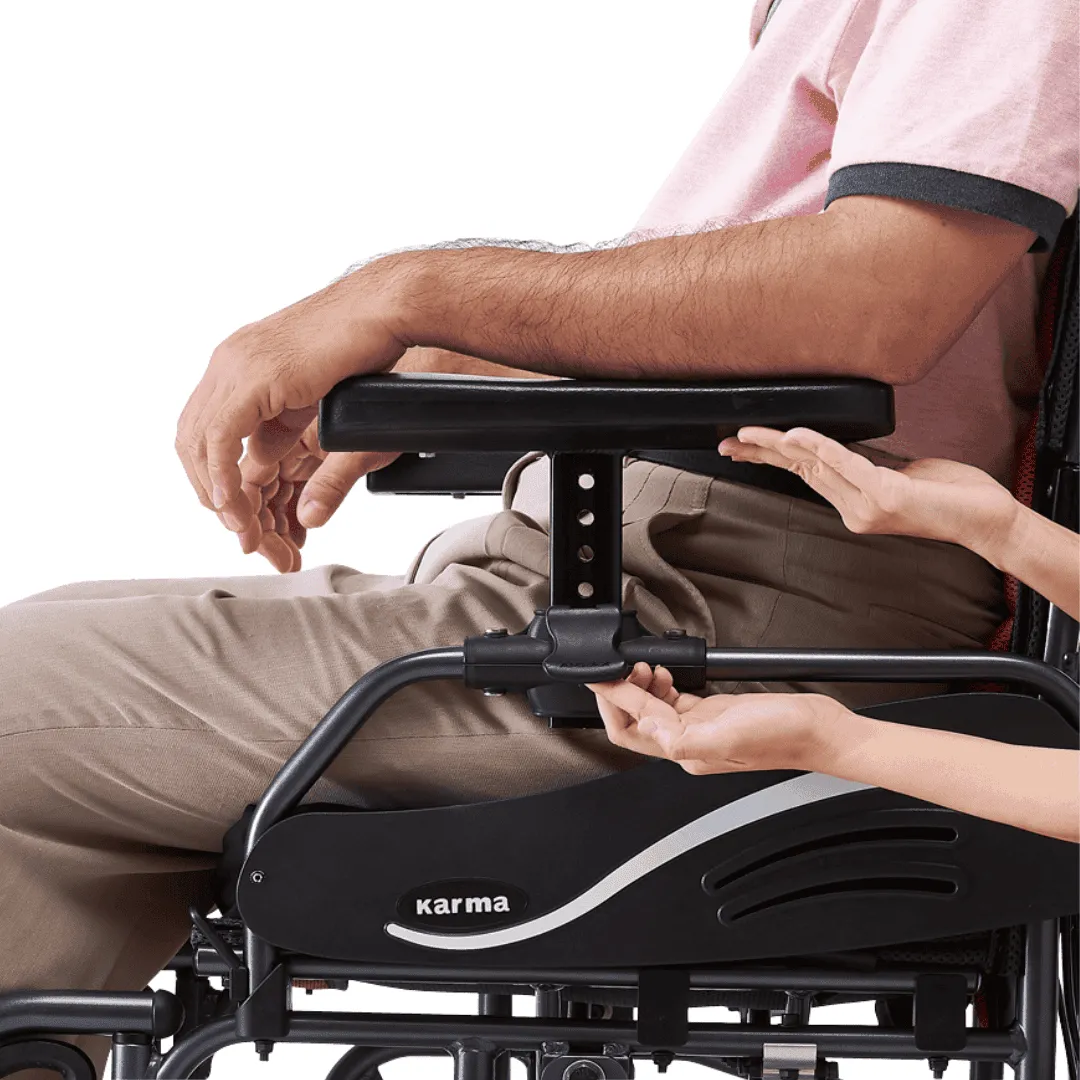

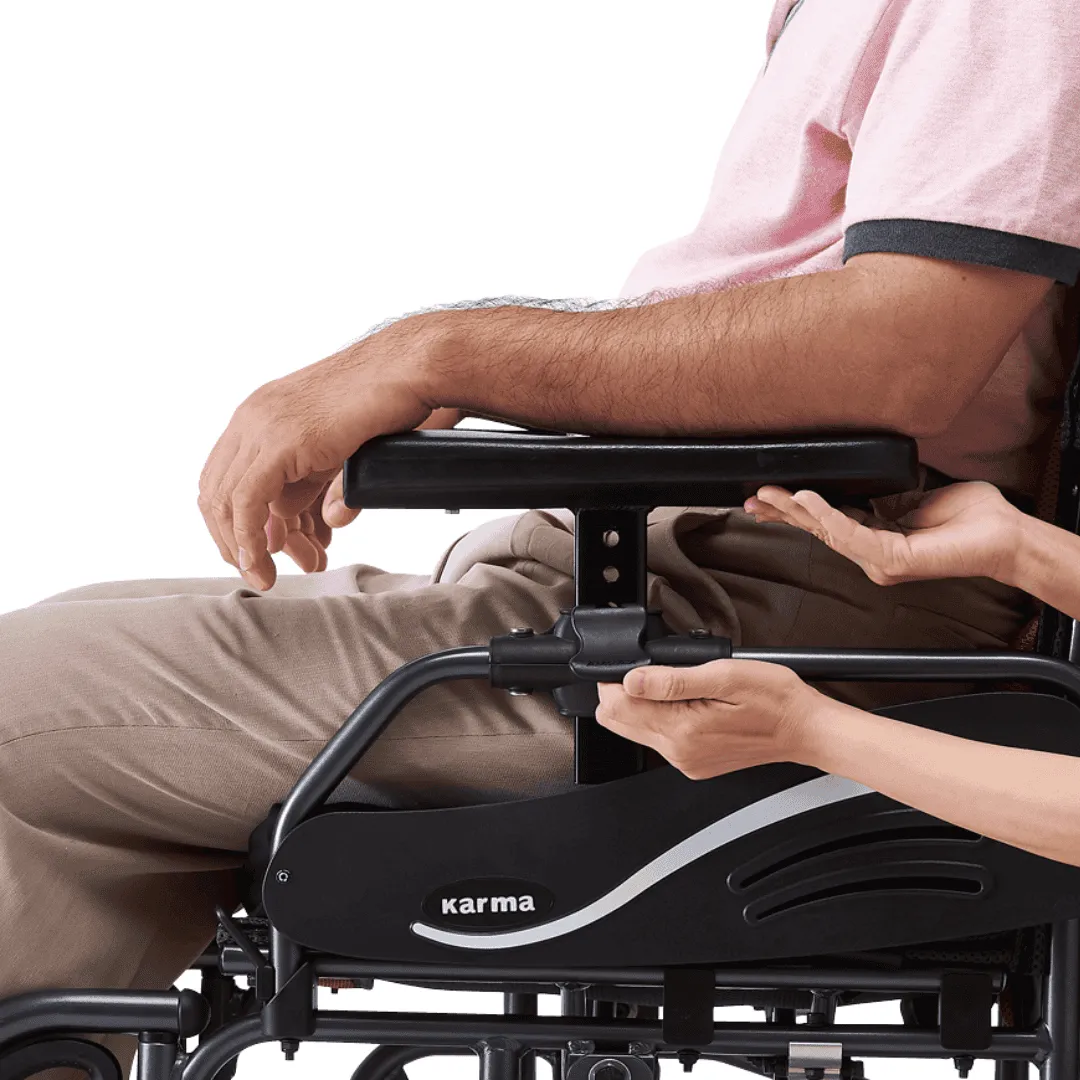

 Adjustable Flip-back Armrest

Adjust the height of the armrest by moving it up or down until you find the ideal height. A proper armrest height is helpful to relieve loads on the neck, shoulders and arms and alleviate stress on the back. No tools required.

Detachable Swing-away Footrest

-  Allows for easy tranfer, on and off the wheelchair. Easy to detach. No tools required.

 Hydraulic Pressure Support System

The VIP 515 Tilt-in-Space system is composed of two hydraulic gas struts that provides a smooth and controlled motion. They minimize shock and stabilise the tilting speed. The attendant is able to lift the wheelchair user back to an upright position with greater efficiency.

AEGIS Microbe Shield

The upholstery is treated with Aegis Microbe Shield, which is approved by the FDA, EPA, EU, etc.. The anti-microbial upholstery inhibits bacterial and fungal growth, eliminates odor and is designed for easy cleaning. It is a shield for your health.

Crash Test Approved

The VIP 515 is approved for transportation in accordance with ISO 7176-19. This means it is suitable to be used as a seat in a motor vehicle for transportation.

Available Options

Choose between an attendant-propelled wheelchair with 14″ rear wheels or the self-propelled wheelchair with 20″ (fixed or quick-release) rear wheels.

Height Adjustable Armrest

-  A proper armrest height is helpful to relieve loads on the neck, shoulders and arms and alleviate stress on the back.

PRODUCT FEATURES

  • Tilt-in-Space – The Tilt-in-Space system allows the attendant to change the position of the user by tilting the chair, thus shifting the pressure away from one point and redistributing it over a larger surface area. This feature helps reduce the risks of developing pressure ulcers and avoid back pain.
  • Foldable and Compact – Made of aircraft-grade aluminum alloy, the VIP 515 is not only lightweight, it folds compactly, offering greater convenience for both storing and traveling. No tools required for assembly or disassembly.
  • Flip-back Armrest – The armrest flip-backs for easier transport, on and off the Karma VIP515 Positioning Wheelchair.
  • Adjustable Flip-back Armrest – Adjust the height of the armrest by moving it up or down until you find the ideal height. A proper armrest height is helpful to relieve loads on the neck, shoulders and arms and alleviate stress on the back. No tools required.
  • Detachable Swing-away Footrest – Allows for easy transfer, on and off the wheelchair. Easy to detach. No tools required.
  • Hydraulic Pressure Support System – The VIP 515 Tilt-in-Space system is composed of two hydraulic gas struts that provides a smooth and controlled motion. They minimize shock and stabilise the tilting speed. The attendant is able to lift the wheelchair user back to an upright position with greater efficiency.
  • Available Options – Choose between an attendant-propelled wheelchair with 14″ rear wheels or the self-propelled wheelchair with 20″ (fixed or quick-release) rear wheels.

 SPECIFICATION

Product Model                       VIP 515 (KM-1520.3T)
Nominal Seat Width (inch)1618
Caster x Rear wheel size (in)7 x 20
Maximum user weight (kg) 115
Overall length with legrest (mm)10701070
Overall width (mm)660710
Overall height (mm)955 / 1330 (with headrest)
Folded length (mm)790790
Folded width (mm)375375
Folded height (mm)760760
Total mass (kg)20.020.3
Mass of the heaviest part (kg)16.216.4
Handrim diameter (mm)430430
Horizontal location of axle (mm)66
Minimum turning radius (mm)860870
Minimum turning radius without user (mm)820835
Pivot width (mm)12101230
Static stability downhill (X°)
N/A
Static stability uphill (X°)N/A
Static stability uphill with anti-tippers (X°)N/A
Static stability sideways (X°)N/A
Seat plane angle (X°)1 ~ 37
Effective seat depth (mm)420420
Nominal seat depth (mm)415415
Effective seat width (mm)475520
Seat surface height at front edge (mm)490485
Backrest angle (X°)13
Seat to backrest angle (X°)94
Backrest height (mm)460460
Headrest height above seat (mm)600 ~ 740600 ~ 740
Leg to seat angle (X°)114
Footrest to seat distance (mm)405 ~ 480405 ~ 480
Armrest to seat distance (mm)240 ~ 320240 ~ 320
Front location of armrest structure (mm)370370
